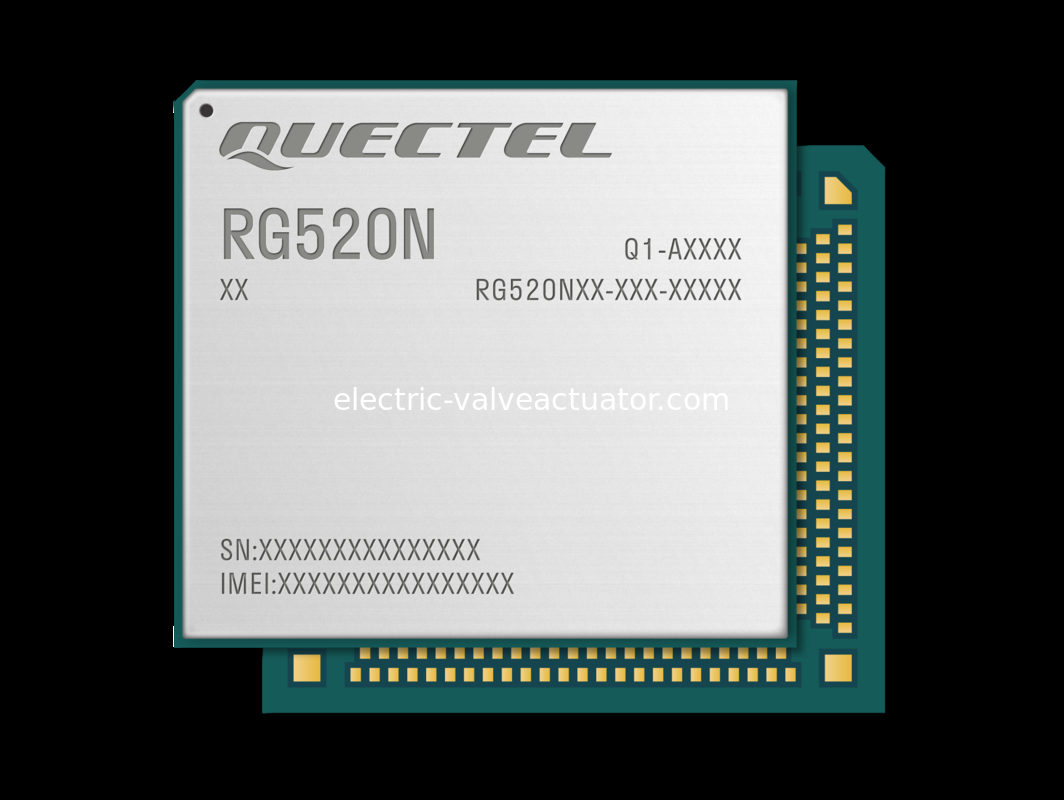

5G RG520N series 5G Sub-6GHz module, high-speed 5G communication module

• 5G/4G/3G multi-mode module with LGA form factor, optimized for IoT and eMBB applications
• Worldwide 5G and LTE-A coverage
• 5G NSA and SA modes
• Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
• Feature refinements: DFOTA and VoLTE (optional)

Quectel RG520N is a series of 5G Sub-6 GHz LGA modules optimized specially for IoT and eMBB applications. Adopting the 3GPP Rel-16 technology, it supports both 5G NSA and SA modes with Option 3x/ 3a/ 3 and Option 2 network architectures, and it is backwards compatible with 4G/ 3G network.

The module is pin-to-pin compatible with Quectel 5G module RG50xQ series and LTE-A Cat 12 module EG512R-EA. The module can meet customers' different application demands for high speed, large capacity, low latency, high reliability, etc.

RG520N series module is an industrial-grade module for industrial and commercial applications only.

RG520N series contains five variants: RG520N-EU, RG520N-NA, RG520N-EB, RG520N-GT and RG520N-LA. It supports Qualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces (USB 2.0/ 3.0/ 3.1, PCIe 3.0, PCM, UART, etc.) and abundant functionalities (USB drivers for Windows 8.1/ 10/ 11, Linux and Android) extend the applicability of the module to a wide range of IoT and eMBB applications such as:

• Business routers
• Home gateway
• STB
• Industrial laptops
• Consumer laptops
• Industrial PDAs
• Rugged tablet PCs
• Video transmission
