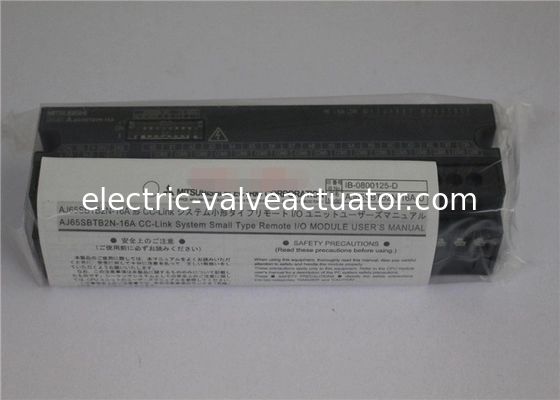

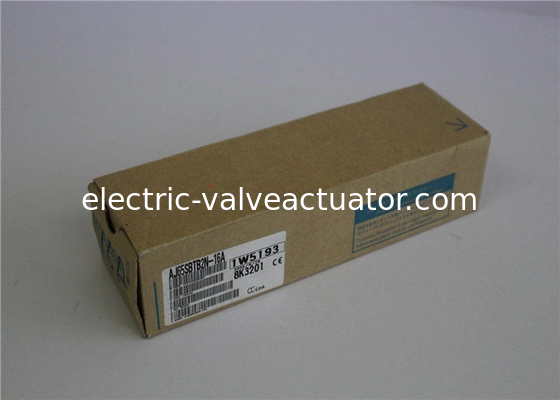

AJ65SBTB2N-16A Mitsubishi Universal Model Redundant Power Supply Module

Name: AJ65SBTB2N-16A Mitsubishi Universal Model Redundant Power Supply Module
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: AJ65SBTB2N-16A
Price: 210.00 USD
Availability: InStock

Nom De Marque:	MITSUBISHI
Numéro De Modèle:	AJ65SBTB2N-16A
Quantité De Produit:	1
Prix:	Negotiations

Informations détaillées

Description du produit

Informations détaillées

Lieu d'origine:

Japon

Capacité du programme:

8 000 étapes

vitesse de traitement d'opération de base (instruction de LD):

0,12 μs

Saisir:

C.A. de 100 à 240 V

Sortir:

5 V DC/3 A

Taper:

Module d'alimentation d'énergie superflu

Détails d'emballage:

Nouvelle boîte originale

Mettre en évidence:

Mitsubishi redundant power supply module

universal power supply module with warranty

ESP controller power supply module

Description du produit

AJ65SBTB2N-16A Mitsubishi Universal Model Redundant Power Supply Module

Description

The Mitsubishi AJ65SBTB2N-16A is a 16-point digital input module belonging to the MELSEC AnS series. It functions as a remote device station for the CC-Link network, a high-performance industrial fieldbus system. This unit acts as a critical interface, allowing a central PLC (Programmable Logic Controller) to receive on/off status signals from up to 16 field devices (like sensors, switches, and pushbuttons) located far away in the industrial environment. Its primary role is to gather discrete input data from the factory floor and transmit it digitally over the CC-Link network to the master PLC, enabling centralized control and monitoring while significantly reducing wiring costs.

Features

CC-Link Network Compatibility: Seamlessly integrates into a CC-Link system as a remote device station, supporting high-speed, reliable data communication at rates up to 10 Mbps.
16 Point Input Channel: Provides 16 points for connecting digital input signals. All points share a common terminal.
High Noise Immunity: Designed with robust electrical isolation and noise filtering techniques, making it suitable for harsh industrial environments with electrical interference.
Diagnostic LEDs: Features a comprehensive set of status indicators, including RUN, ERR., L RUN, and L ERR. LEDs, for easy monitoring of the module's operation and network connection health.
Compact and Modular Design: Its slim form factor allows for high-density installation on a DIN rail, saving control panel space.
Easy Wiring: Uses a removable terminal block for convenient and secure wiring connection.
Verified Compatibility: Certified to work flawlessly with master PLCs from Mitsubishi Electric (e.g., Q series, A series) and other CC-Link-compatible master stations.

Material & Usage

Materials: The module features a robust plastic (PBT/PC) housing resistant to chemicals and impact. The terminal block is typically made of heat-resistant and flame-retardant plastic with metal terminals. The internal PCB is coated for protection against dust and humidity.

Primary Usage: This module is exclusively designed for industrial automation systems. Its main applications include:

Factory Automation (FA): Connecting limit switches, photoelectric sensors, and push buttons in assembly lines, packaging machinery, and robotic workcells.
Process Control: Monitoring the status of valves, pumps, and other equipment.
Building Automation: Integrating industrial-grade input signals into a centralized control system.
It is used to reduce the amount of wiring between a central control cabinet and field devices by leveraging a single network cable.

Important Parameters

Parameter	Specification	Notes
Model Name	AJ65SBTB2N-16A	16-point DC input module for CC-Link
Product Series	MELSEC AnS Series
Number of Points	16 points	All points are common (single common terminal)
Input Type	Sink / Source	Selectable via common terminal wiring
Rated Input Voltage	24 V DC	-15% to +20%
Rated Input Current	Approx. 4.3 mA per point (at 24V DC)
ON Voltage / ON Current	19 V DC or higher / 3 mA or more
OFF Voltage / OFF Current	10 V DC or lower / 1.5 mA or less
Response Time	ON -> OFF: 1 ms max. OFF -> ON: 1 ms max.
Isolation Method	Photocoupler Isolation	Between inputs and communication circuit
Connection Method	Removable terminal block
Current Consumption (5V DC)	0.12 A (from base unit or power supply)
Weight	Approx. 0.2 kg

Performance Specifications

Input Specification	Details
Input Type	AC input
Number of Points	16 points
Rated Input Voltage/Frequency	AC100～120V(+10/-15％),50/60Hz(±3Hz)
Input Voltage Distortion Rate	5％ or less
Rated Input Current	Approx. 7mA(AC100V,60Hz)
Maximum Simultaneous Input Points	100％(AC110V), 60％(AC132V)
Inrush Current	Max 200mA within 1ms(AC132V)
ON Voltage/ON Current	AC80V or higher/5mA or higher
OFF Voltage/OFF Current	AC30V or lower/1.7mA or lower
Input Impedance	Approx. 15kΩ(60Hz), approx. 18kΩ(50Hz)
Input Response Time (OFF->ON)	20ms or less(AC100V 60Hz)
Input Response Time (ON->OFF)	20ms or less(AC100V 60Hz)
Input Common Method	16 points 1 common (terminal block type 2-wire)
Input Isolation Method	Photocoupler isolation

General Specifications

Parameter	Specification
Operating Ambient Temperature	0～55℃
Storage Ambient Temperature	-20～75℃
Operating Ambient Humidity	10～90％RH, no condensation
Storage Ambient Humidity	10～90％RH, no condensation
Vibration Resistance	Compliant with JIS B 3502, IEC 61131-2
Shock Resistance	Compliant with JIS B 3502, IEC 61131-2 (147m/s2, XYZ 3 directions each 3 times)
Operating Atmosphere	No corrosive gases
Operating Altitude	0～2000m
Installation Location	Inside control panel
Overvoltage Category	II or less
Pollution Degree	2 or less
