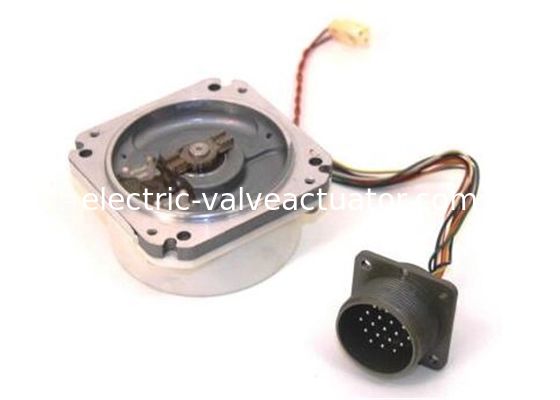

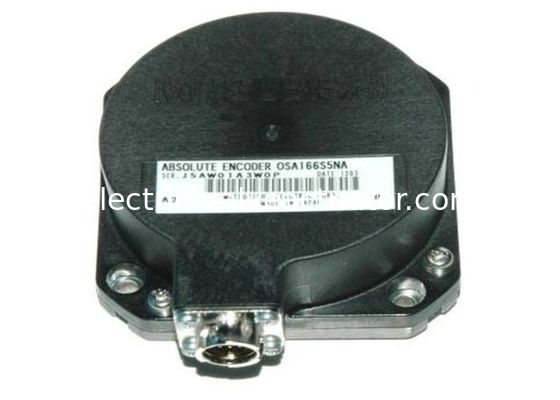

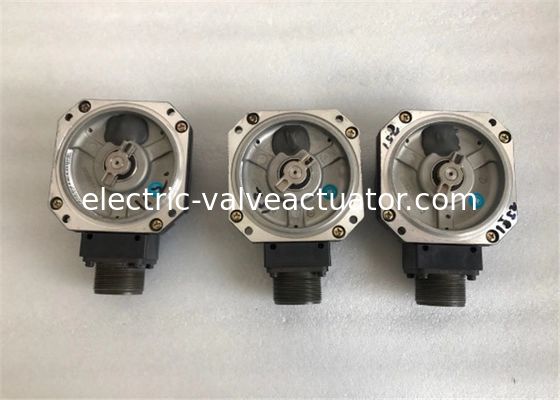

Servo Equipment Servo Motor Encoder OSA166S5NA High Frequency Long Working Life

Mitsubishi Internal encoders for servo equipment OSA166S5NA Servo Motor Encoder

Detailed Product Description:

Specifications:

MITSUBISHI ELECTRIC pulse coder reference OSA104 (OSA 104) for sale online on Cnc-shopping webstore. Cnc-shopping proposes this encoder which is an absolute pulse coder. This absolute pulse coder is mounted on MITSUBISHI ELECTRIC servo motor type HA (exemple: HA103NCS). This MITSUBISHI ELECTRIC OSA104 (OSA 104) encoder is ready to replace your defective OSA104 (OSA 104) pulse coder and is sold with a warranty.

A metal disc containing a set of concentric rings of openings is fixed to an insulating disc, which is rigidly fixed to the shaft. A row of sliding contacts is fixed to a stationary object so that each contact wipes against the metal disc at a different distance from the shaft. As the disc rotates with the shaft, some of the contacts touch metal, while others fall in the gaps where the metal has been cut out. The metal sheet is connected to a source of electric current, and each contact is connected to a separate electrical sensor. MITSUBISHI ELECTRIC OSA104 (OSA 104)


Mitsubishi servo encoder

When extreme high speed and accuracy is essential for your application, Mitsubishi's linear servos are the perfect solution. With 17 core type (liquid cooled) models ranging from 60N to 18000N and 9 coreless types in the range of 50N to 3200N, our linear servo technology offers high power density in a compact package, improved heat dissipation, and extremely smooth motion. Designed for easy-of-use, our motors seamlessly integrate with our MR-J3-RJ004 type amplifiers allowing for seamless start up and faster project development as well as a "Robust Disturbance compensation function" that suppresses offset disturbances that cause uneven speeds. Mitsubishi's linear motors have a successful history in many industries ranging from semiconductor manufacturing to machine tools. Set-up, diagnostics, and tuning are easy for all Mitsubishi's servos, thanks to MR-Configurator, our Windows based software package.
