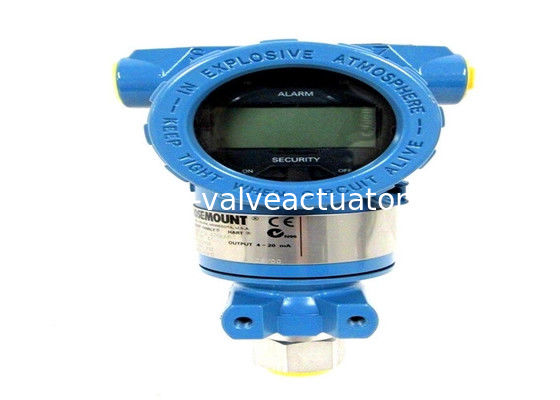

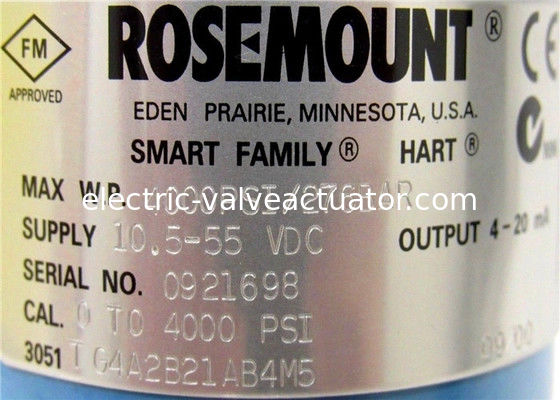

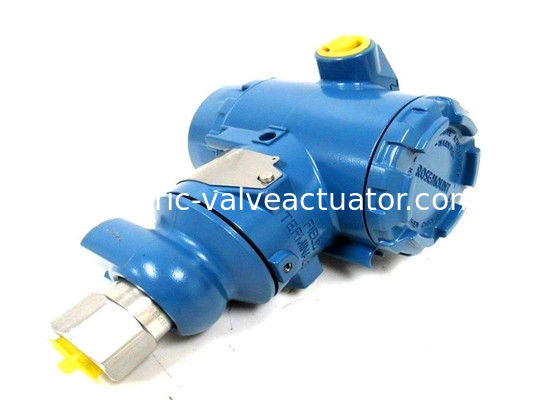

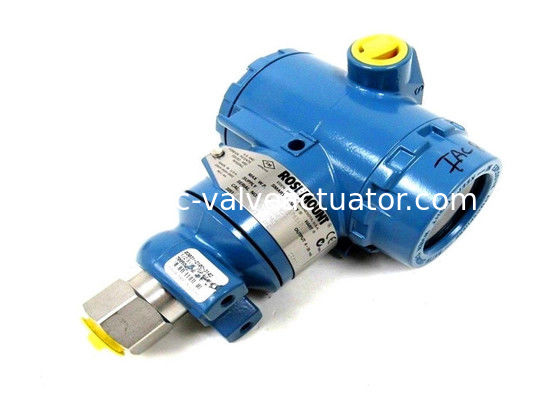

Rosemount 3051TG In-Line Pressure Transmitter 3051TG4A2B21AB4M5E5 -14.7 to 4000PSI

Name: Rosemount 3051TG In-Line Pressure Transmitter 3051TG4A2B21AB4M5E5 -14.7 to 4000PSI
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 3051TG4A2B21AB4M5E5
Price: 210.00 USD
Availability: InStock

Nom De Marque:	Rosemount
Numéro De Modèle:	3051TG4A2B21AB4M5E5
Quantité De Produit:	1

Informations détaillées

Description du produit

Informations détaillées

Place of Origin:

USA

Origin Of Country:

Singapore

Type:

Pressure Transmitter

Range:

-14.7 To 4000 Ps

Communication Protocol:

4-20 MA HART

MOQ:

1 PIECE

Warranty:

12 Months

Packaging Details:

New Original Box

Description du produit

Rosemount 3051TG In-Line Pressure Transmitter 3051TG4A2B21AB4M5E5 -14.7 to 4000PSI

With the Rosemount 3051 Pressure Transmitter, you’ll gain more control over your plant. You’ll be able to

reduce product variation and complexity as well as your total cost of ownership by leveraging one device

across a number of pressure, level and flow applications. You’ll have access to information you can use to

diagnose, correct and even prevent issues. And with unparalleled reliability and experience, the Rosemount

3051 is the industry standard that will help you perform at higher levels of efficiency and safety so you can

remain globally competitive.

Quick Details:

Rosemount 3051T In-Line Pressure Transmitters are the industry standard for Gage and

Absolute pressure measurement. The in-line, compact design allows the transmitter to

be connected directly to a process for quick, easy and cost effective installation.

Capabilities include:

 Power Advisory can proactively detect degraded electrical loop integrity issues

(Option Code DA0)

 Local Operator Interface with straightforward menus and built-in configuration

buttons (Option Code M4)

 Safety Certification (Option Code QT)

Specifications:

Rangedown	Up to 150:1
Communication Protocol	4-20 mA HART, WirelessHART®, FOUNDATION fieldbus, Profibus, 1-5 V Low Power HART
Measurement Range	Up to 2000psi (137,89 bar) Differential, Up to 2000psig (137,89 bar) Gage, Up to 4000psia (275,79 bar) Absolute
Process Wetted Material	316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated Alloy 400, Gold-plated 316L SST
Diagnostics	Basic Diagnostics, Power Advisory Diagnostics
Certifications/Approval	SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE, hazardous location, see full specs for complete list of certifications

If you need more order information , we can send you the complete datasheet.

Certifications:

1. Certificate of Origin

2. Calibration Certificate

3. Material Traceability Certification

We also can offer these modeles:

Brand	Model	Condition
Rosemount	3051CD0A02A1AB1H2L4M5	New
Rosemount	3051CD1A02A1AB1H2L4M5	New
Rosemount	3051CD2A02A1AB1H2L4M5	New
Rosemount	3051CD3A02A1AB1H2L4M5	New
Rosemount	3051CD4A02A1AB1H2L4M5	New
Rosemount	3051CD5A02A1AB1H2L4M5	New
Rosemount	3051TG1A2B21A	New
Rosemount	3051TG3A2B21AB4	New
Rosemount	3051TG1A2B21AB4M5K5	New
Rosemount	3051TG5A2B21AB4M5E5	New
Rosemount	3051TG5A2C21AB4M5K5	New
Rosemount	3051TA1A2B21AB4M5K5	New
Rosemount	3051TA3A2B21AB4M5E5	New
Rosemount	3051TA3A2B21AB4M5I5	New

Rosemount	3051GP1A2B21AB4M5	New
Rosemount	3051GP3A2B21AB4M5K5	New
Rosemount	3051GP4A2B21AB4M5E5	New
Rosemount	3051GP5A2B21AB4M5I5	New
Rosemount	3051CG1A02A1AB1H2L4M5
Rosemount	3051CG1A02A1AB3H2L4M5
Rosemount	3051CG4A02A1AB1H2L4M5K5	New
Rosemount	3051CG4A02A1AB1H2L4M5I5	New
Rosemount	3051CG5A02A1AB3H2L4M5I5	New
Rosemount	3051CA1A02A1AB1H2L4M5	New
Rosemount	3051CA2A02A1AB1H2L4M5K5	New
Rosemount	3051CA4A02A1AB1H2L4M5E5	New
Rosemount	3051CA5A02A1AB1H2L4M5I5	New
Rosemount	3051CA3A02A1AB3H2L4M5K5	New
Rosemount	3051CA5A02A1AB3H2L4M5K5	New
Rosemount	3051CA1A02A1AB3H2L4M5E5	New
