| Lieu d'origine: | La Chine |
| Nom de marque: | DYLINK |
| Numéro de modèle: | SW1801D |
| Quantité de commande min: | 1 ensemble |
|---|---|
| Détails d'emballage: | Emballage de boîte en bois |
| Délai de livraison: | 15 jours après la signature du contrat |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 1000sets |
| Caractéristiques: | SW1801D | Connexions d'ordinateur: | 8 |
|---|---|---|---|
| Connecteurs de centre serveur: | femelle de 8x DVI ; type femelle de 8x USB de B | Résolutions maximum de Digital: | x 1920 1200@60Hz |
| TemperatureRange fonctionnant: | -40 | +55°C | alimentation d'énergie: | DC12V/1A |
| Dimensions (W X H X D): | 438mm x 153mm x 44.5mm | ||
| Surligner: | Commutateur femelle de DVI KVM,8 commutateur gauche de DVI KVM,Commutateur du bâti de support de DVI KVM |
||

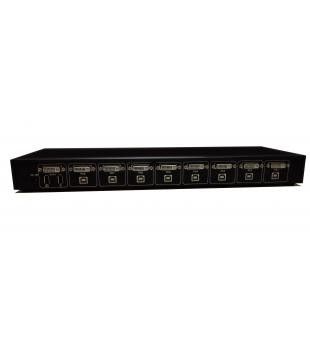

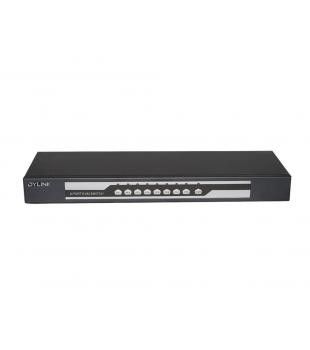

Description: The DYLINK® SW1801D 8 Port DVI KVM Switch allows quick switch between 8 computers from a single USB keyboard and mouse. The SW1801D setup is easy,simply plug the cables into their appropriate ports . There is no software to configure, no installations, and no incompatibility issues. In addition, the SW1801D allowing it to work on multiple OS platforms including:Windows, Linux, and Mac.
Features
■ Share keyboard, mouse, and DVI display between eight DVI-equipped computers
■ Full plug-and-play support with USB keyboards and mouses.
■ Supports a maximum resolution of 1920x1200@60Hz
■ Hotkey and push-button switching
■ OS independent - No driver or software required
■ Supports DDC2B for monitor detection
■ Multiplatform support :Windows, Linux and Mac
■ HP,DELL,IBM mouse and keyboard compatable
Package Includes
• 1 x DVI KVM Switcher
• 1 x Power Adapter
• 1 x User’s Manual
Specifications
| Specifications | SW1801D |
| Computer Connections | 8 |
| Host Connectors | 8x DVI Female；8x USB Type B female； |
| Console Interfaces |
1x DVI Female； 2x USB Type A female； |
| DVI Specification | V1.0 |
| Maximum Digital Resolutions | 1920 x 1200@60Hz |
| LED Indicators | 8 |
| Port Selection | Push Button and Hotkeys |
| Power Supply | DC12V/1A |
| Operating TemperatureRange | -40 ～ +55°C |
| Dimensions(W x H x D) | 438mm X 153mm X 44.5mm |
This product is also named as DVI Switch,or DVI KVM Switch,or DVI USB KVM Switch,and so on.
